Figure 200

Color Code:
Blue Nut, Grey Sub

Compatible with other brands

NBR/Nitrile (standard service), Viton^®(sour gas service)

Three lug nuts and self-locking ACME threads provide quick make-up and break-out
Color coded for quick identification
Unique identification for sour gas unions
Meet or exceed National Association of Corrosion Engineers standard NACE MR-01-75 and API RP-14E
Manufactured from quality steel meeting ASTM and/or AISI standards
All unions provide pressure-tight & positive sealing for low-pressure services (500 to 2,000 PSI)|
The spherical surface male sub and angular surface female sub form a metal-to-metal seal, the ball and tangent provides a perfect seal

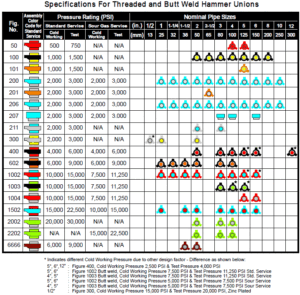

Range from 1/2” to 12” with cold working pressures from 500 to 20,000 PSI

Request A Quote

Figure 200 unions are used in general service manifold lines and air, water, oil or gas applications
Available in both threaded and butt weld ends
Metal to metal sealing surface
Available in butt weld schedules 40 and 80
